HR 8123

type ST · family 1VP · 19.7 kV maximum anode voltage · 90° deflection · 3 windings · 390 g

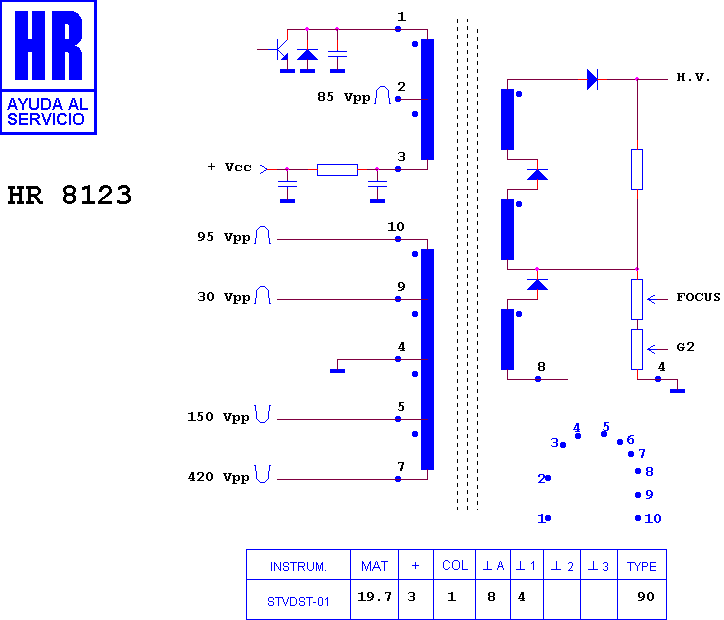

Schematic diagram for HR 8123
schematic

Manufacturer equivalents (20)

001-220104-16 · 001-220216-16 · 1352.5054 · 1352.5054 B · 6174 Z 8005 E · 6174V6002A · 6174V6002B · 6174V8002B · 6174V8003B · 6174Z6002B · 6174Z8005A · BSC23N0104 · BSC26N2106 · BSC26N2106A · BSC26N2114 · FSA41012M · FTSPN 13 T 8005 E · FTSPN13T8005A · HR 8123 · TFB4125JG

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8847 · HR 8858 · HR 7649 · HR 7480 · HR 7611 · HR 8161 · HR 7136 · HR 7646 · HR 7639 · HR 7451 · HR 6016

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

GOLDSTAR - LG CF 20 K 44 EX · GOLDSTAR - LG CHASIS PC 81 B · GOLDSTAR - LG CI 20 F 80 F · GOLDSTAR - LG PC 81 B
