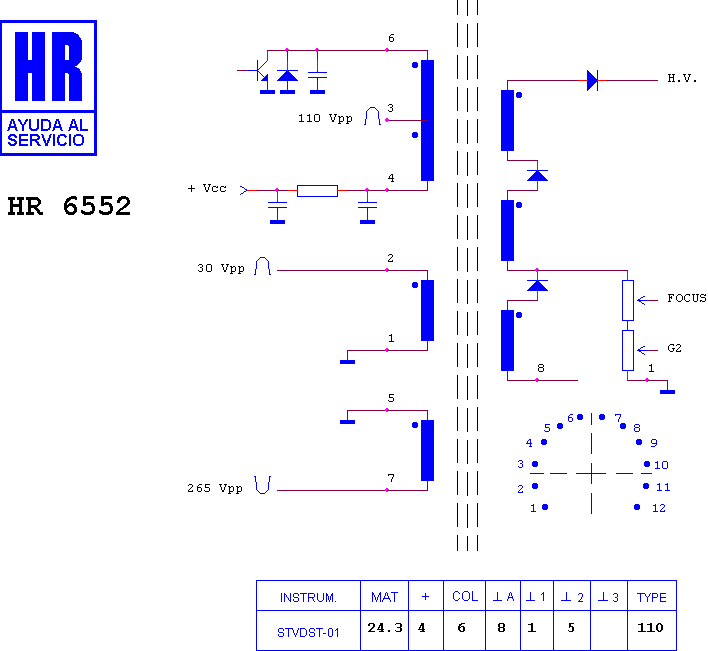

HR 6552

type ST · family 1BP1 · 24.3 kV maximum anode voltage · 110° deflection · 4 windings · 354 g

Manufacturer equivalents (5)

037024 · 37024.00 · 85-9616-6 · FAT 30130 · KN 30130

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8923 · HR 6028 · HR 8673 · HR 7381 · HR 7382 · HR 8679 · HR 7443 · HR 7295 · HR 8474 · HR 6499 · HR 8444 · HR 6218

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

TATUNG DZ 8555
