HR 6234

type ST · family 1BP1 · 29.4 kV maximum anode voltage · 110° deflection · 4 windings · 371 g

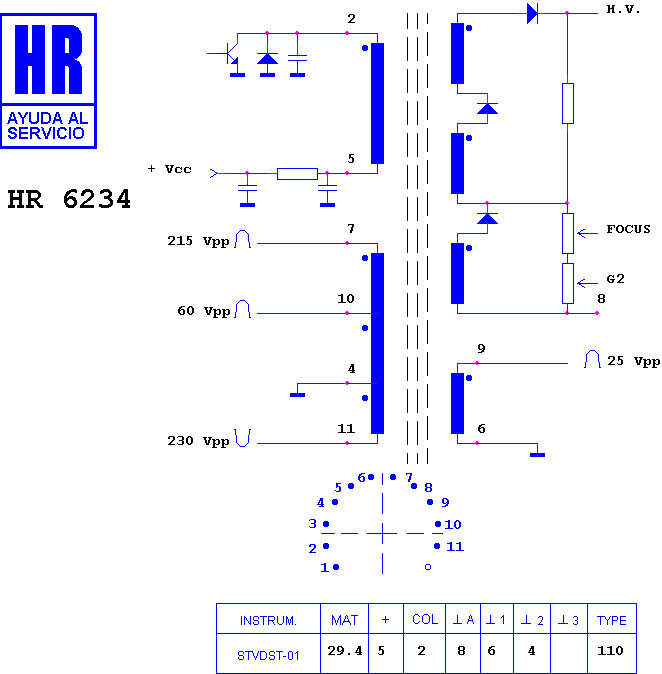

Schematic diagram for HR 6234
schematic

Manufacturer equivalents (1)

HR 6234

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6124 · HR 6370 · HR 8857 · HR 6238 · HR 6368 · HR 6703 · HR 7390 · HR 6299 · HR 8465 · HR 6073 · HR 80037 · HR 7185

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
