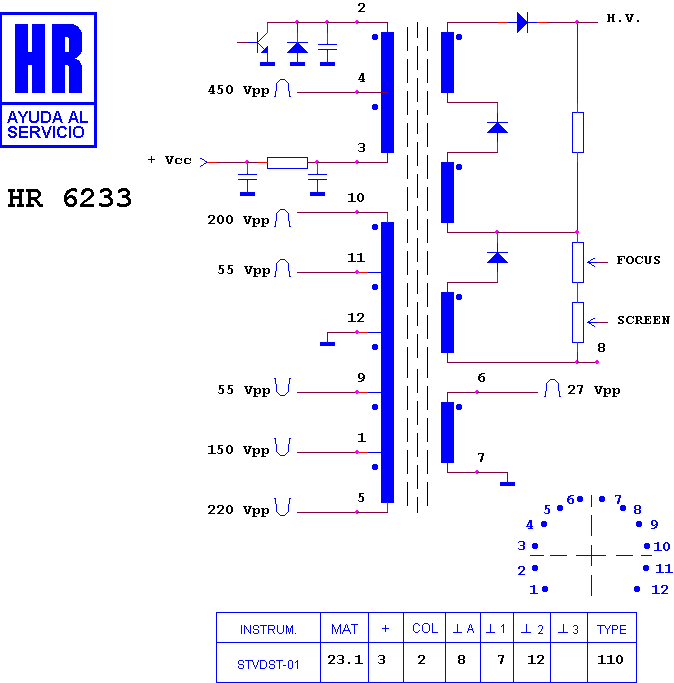

HR 6233

type ST · family 1BP1 · 23.1 kV maximum anode voltage · 110° deflection · 3 windings · 370 g

Manufacturer equivalents (2)

1192.0327 · HR 6233

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6135 · HR 6087 · HR 6107 · HR 6373 · HR 6136 · HR 6109 · HR 6260

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
