HR 6136

type ST · family 1BP1 · 24.9 kV maximum anode voltage · 110° deflection · 2 windings · 360 g

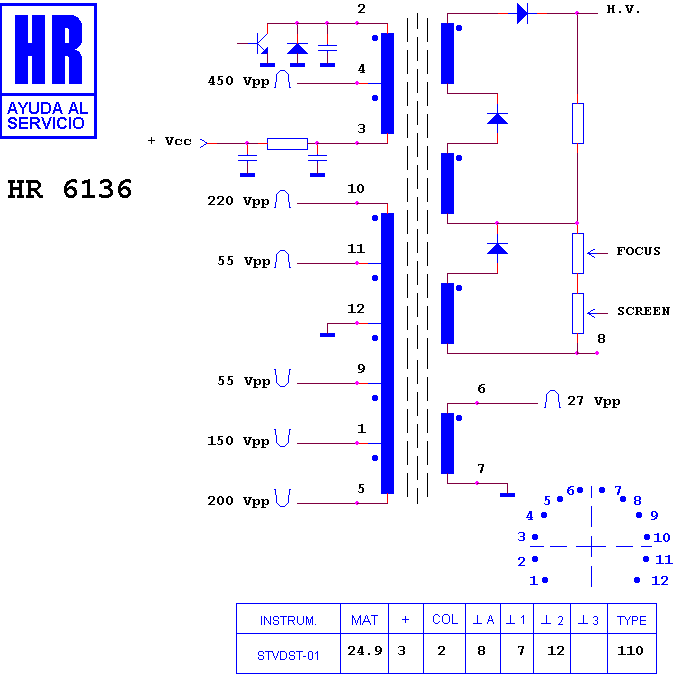

Schematic diagram for HR 6136
schematic

Manufacturer equivalents (1)

HR 6136-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6233 · HR 6135 · HR 6087 · HR 6109 · HR 6107 · HR 6260 · HR 6373

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

UNIC CHASIS 9000 · UNIC TVC 3310 · UNIC TVC 3320
