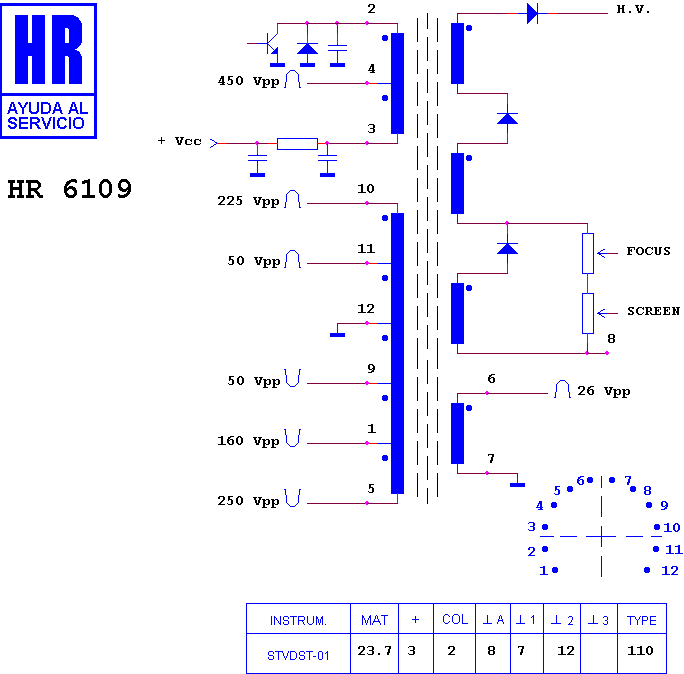

HR 6109

type ST · family 1BP1 · 23.7 kV maximum anode voltage · 110° deflection · 2 windings · 370 g

Manufacturer equivalents (2)

37348.00 · 37348.01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6136 · HR 6107 · HR 6135 · HR 6087 · HR 6373 · HR 6260 · HR 6233
