HR 6087

type ST · family 1BP1 · 23.1 kV maximum anode voltage · 110° deflection · 3 windings · 370 g

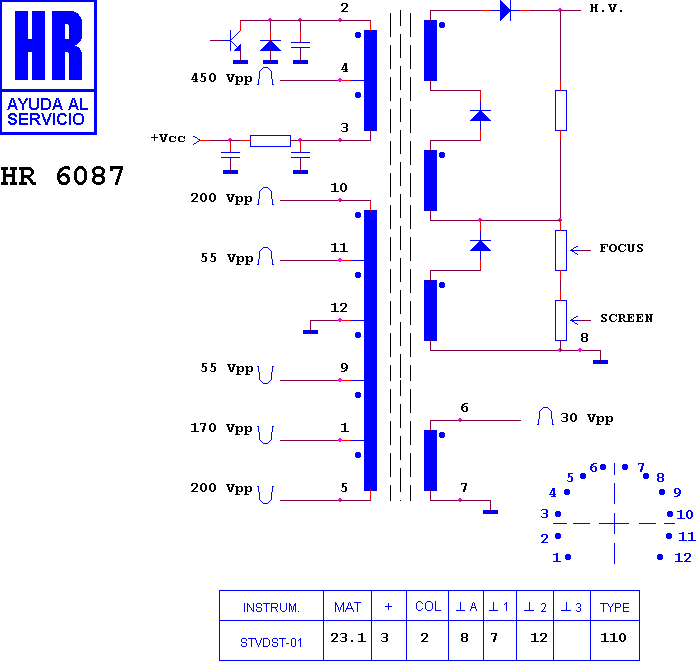

Schematic diagram for HR 6087
schematic

Manufacturer equivalents (4)

37350.00 · 37350.01 · 37350.02 · HR 6087

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6135 · HR 6233 · HR 6136 · HR 6109 · HR 6107 · HR 6260 · HR 6373

Fitted to (2)

KARSA TVC 110§ D.S. · NEC CHASIS NC 9001
