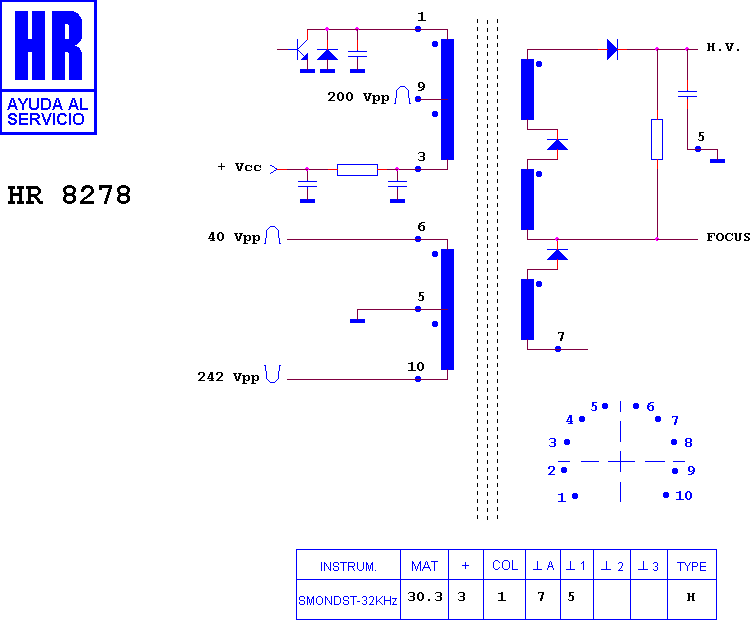

HR 8278

type SM · family 1ACS · 30.3 kV maximum anode voltage · H° deflection · 3 windings · 434 g

Manufacturer equivalents (1)

HR 8278

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46232 · HR 46185 · HR 6231 · HR 7643

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
