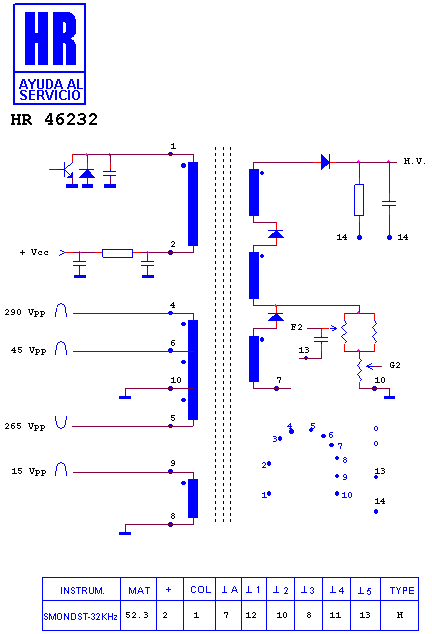

HR 46232

type SM · family 1WD · 52.3 kV maximum anode voltage · H° deflection · 4 windings · 444 g

Manufacturer equivalents (4)

47 F 13 0780 · 47 F 13 0780 S · FEA 690 · FEA 690 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8248 · HR 8278

Notes

COD-028 THE HR TRANSFORMER HAS THE ABL INTERNALY CONNECTED TO THE PIN 7 COD-032 IN THE HR TRANSFORMER THE MISSED PINS ARE CONNECTED INTERNALLY.

Fitted to (6)

CTX 1569 UA · CTX CTX 1569 E · CTX CTX 1569 UA · CTX DBL 1569 UA · CTX MONITOR · CTX PR 500 T

Search this part in the full database
