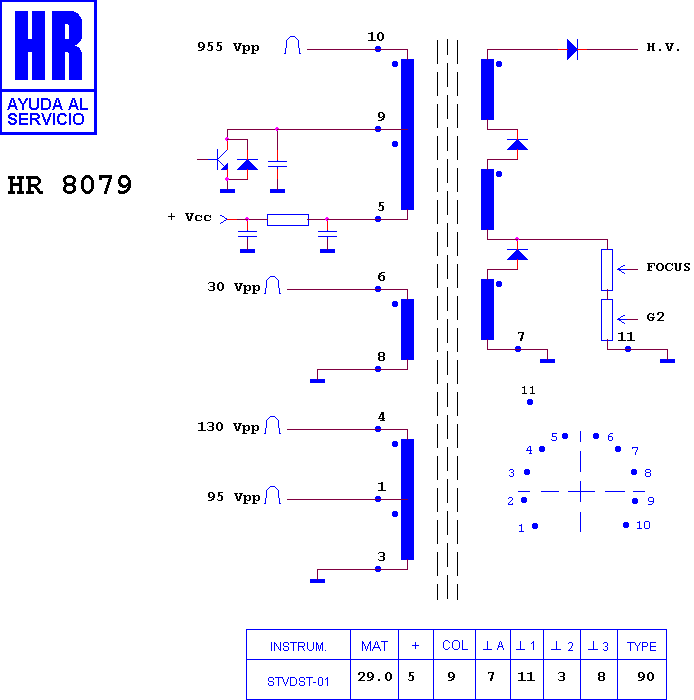

HR 8079

type ST · family 1NP1 · 29 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

Manufacturer equivalents (3)

003071014 · RO 042 · TR 042

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7571 · HR 7545 · HR 7582 · HR 8226 · HR 8035

Fitted to (5)

META CHASIS HECTOR · META HECTOR 37 · META HECTOR 37 E · META HECTOR 51 · META HECTOR 51 E
