HR 8035

type ST · family 1NP1 · 23.5 kV maximum anode voltage · 90° deflection · 4 windings · 270 g

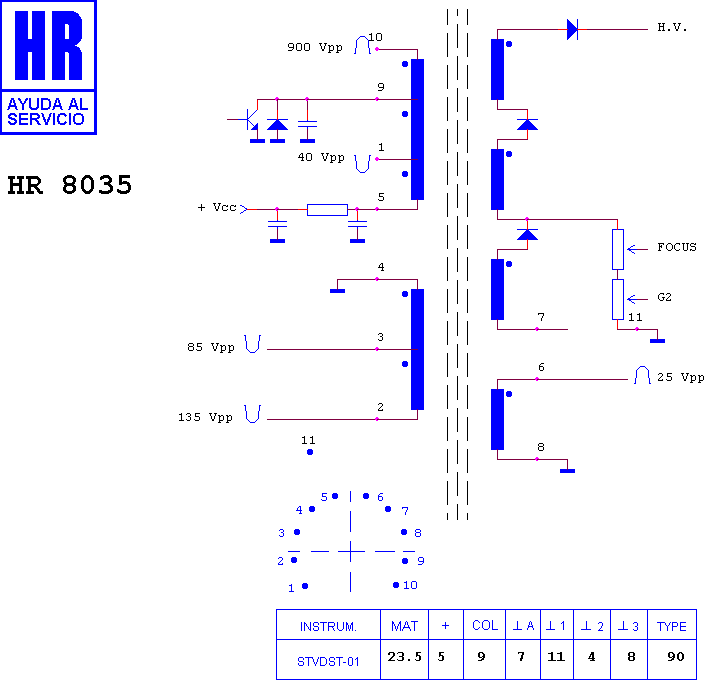

Schematic diagram for HR 8035
schematic

Manufacturer equivalents (10)

003071044 · 104586.50 · 104586.F0 · 4031001906 · 4031001908 · 40331-39 · AFS 298 · RO 669 · TR 602 · TR 669

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8079 · HR 8226

Fitted to (13)

ALBA CTV 3409 · ALBA CTV 3459 · BLUE SKY CT 5196 · BUSH-MURPHY-RANK 1433 · BUSH-MURPHY-RANK 1434 · BUSH-MURPHY-RANK 1473 T · CONTI COC 14 · CROWN CTV 3790 · CROWN CTV 8051 · GOODMANS GTV 148 T · PROTECH 3753 · PROTECH 5566 T · VESTEL 3748
