HR 8226

type ST · family 1NP1 · 23.2 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

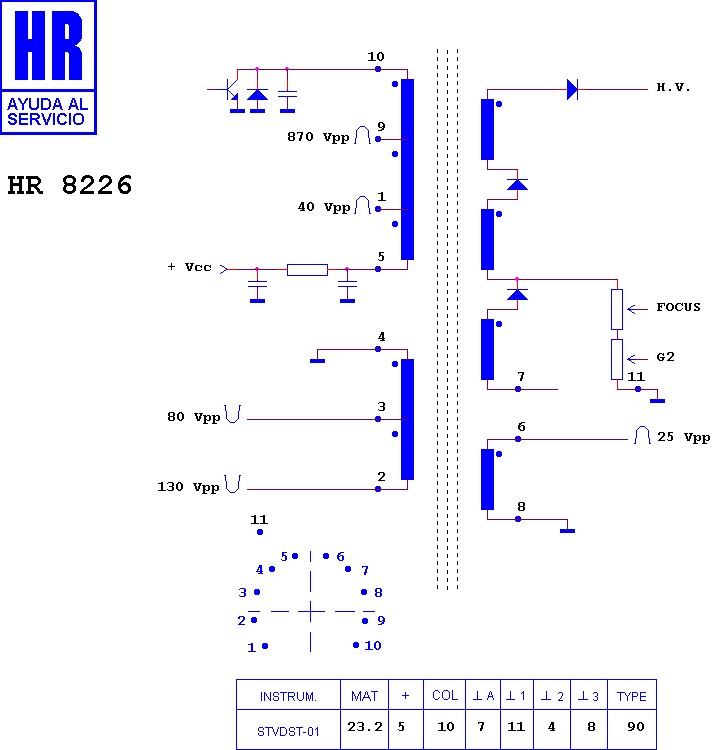

Schematic diagram for HR 8226
schematic

Manufacturer equivalents (11)

003071045 · 0104060 · 0104061 · 104060 · 104061 · 4030001906 · 4031001907 · FAT30580 · KN30580 · RO670 · TR670

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7523 · HR 8035 · HR 8079 · HR 7571 · HR 7545

Fitted to (7)

BUSH-MURPHY-RANK 1433 · BUSH-MURPHY-RANK 1473 T · BUSH-MURPHY-RANK 2028 T · BUSH-MURPHY-RANK 2068 NTX · NEI NE 5159 NT · SEG CT 511 · VESTEL CHASIS 11 AK 17
