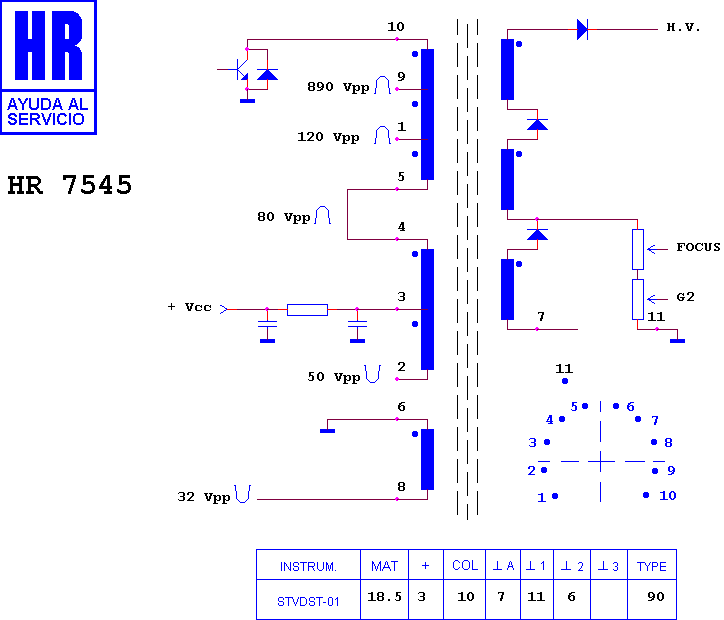

HR 7545

type ST · family 1NP1 · 21.8 kV maximum anode voltage · 90° deflection · 4 windings · 260 g

Manufacturer equivalents (7)

003071001 · 013330371 · 013370731 · 13370731 · 240120.4107 · RO 667 · TR 667

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Fitted to (27)

AKAI CT 2160 · AKAI CT 2160 E · ALBIRAL-ALBICOLOR 2820 T · BUSH-MURPHY-RANK 2003 · BUSH-MURPHY-RANK 2003 A · BUSH-MURPHY-RANK 2820 T · COMFORT CHASIS 11 AK 03 · COMFORT CHASIS VECO 90§ · DIAMOND CHASIS 11 AK 03 · DIAMOND CHASIS VECO 90§ · EFSANE CHASIS 11 AK 03 · EFSANE CHASIS VECO 90§ · IMPERIAL CHASIS 11 AK 03 · IMPERIAL CHASIS VECO 90§ · LUX-MAY M 5554 T · PEKEL CHASIS 11 AK 03 · PEKEL CHASIS VECO 90§ · TURKUAZ CHASIS 11 AK 03 · TURKUAZ CHASIS VECO 90§ · VESTEL CHASIS 11 AK 01 · VESTEL CHASIS 11 AK 03 · VESTEL CHASIS VECO · VESTEL CHASIS VECO 11 AK 01 · VESTEL CHASIS VECO 11 AK 03 · VESTEL CHASIS VECO 90§ · WALTHAM CT 2690 K · WALTHAM CT 3690 K
