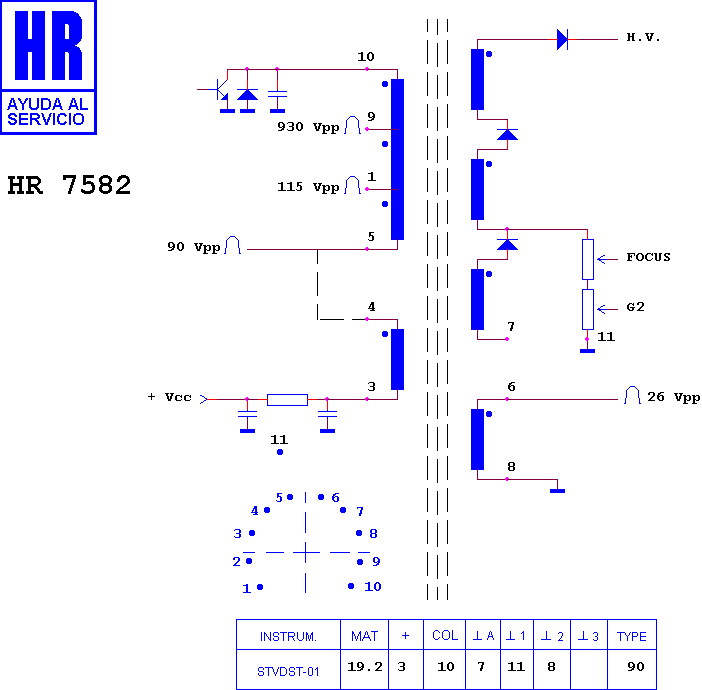

HR 7582

type ST · family 1NP · 19.2 kV maximum anode voltage · 90° deflection · 4 windings · 260 g

Manufacturer equivalents (2)

FAT 30160 · RO 139

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Fitted to (18)

FIRST LINE CHASIS 11 AK 03 · FIRST LINE CT 3693 · FIRST LINE CT 5590 · IMPERIAL 36 M 92 A · IMPERIAL 50 M 92 · IMPERIAL CHASIS VECO 90§ · IMPERIAL COLORADO · IMPERIAL FLORIDA · QUELLE 022.190 · QUELLE 066.687 · QUELLE FK 8105 · QUELLE FT 8106 · QUELLE FT 8107 · QUELLE FT 8108 · VESTEL CHASIS VECO PIN 1 · WALTHAM CHASIS 11 AK 03 · WALTHAM CT 3748 · WALTHAM CT 5547

Search this part in the full database
