HR 7874

type ST · family 1ZP · 29.1 kV maximum anode voltage · 110° deflection · 4 windings · 300 g

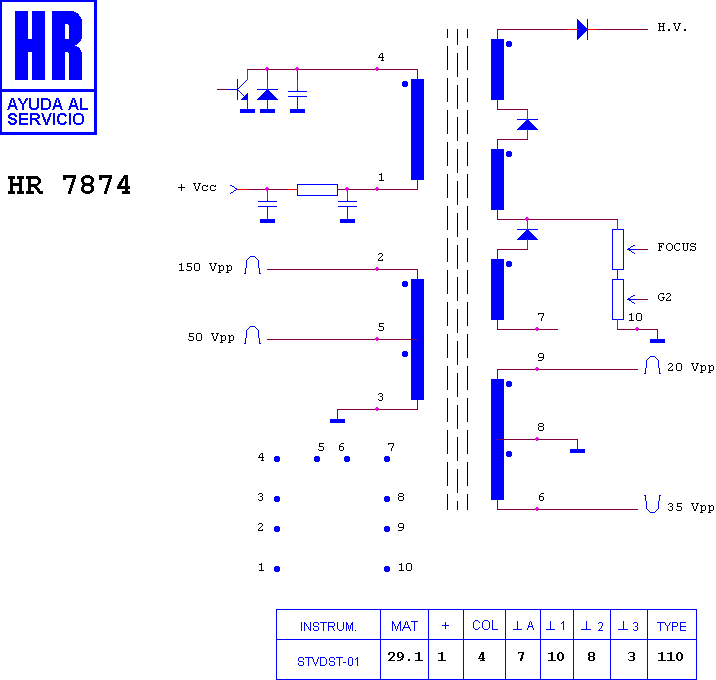

Schematic diagram for HR 7874
schematic

Manufacturer equivalents (6)

610 017 9615 · 726 842 8 · FAT3963 · FD 0094 · FD 94 · ME/6231-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7993 · HR 8770 · HR 7180 · HR 7624 · HR 7288 · HR 7713 · HR 7195 · HR 7516

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

QUELLE 018.697 · QUELLE CTP 6285 · SANYO CED 6016 KV · SANYO CEP 6016 KV · SANYO CEP 6046 · SANYO CZP 6045
