HR 7776

type SM · family 1WP1 · 20.5 kV maximum anode voltage · H° deflection · 3 windings · 428 g

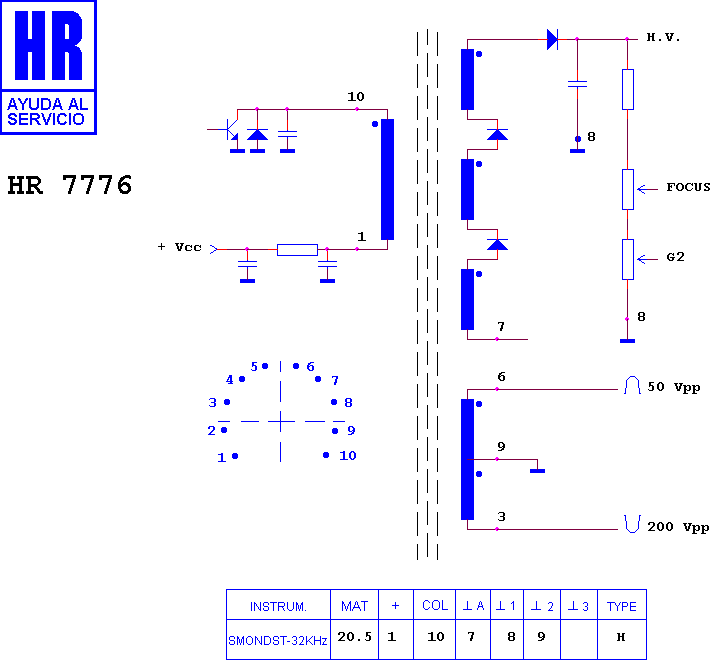

Schematic diagram for HR 7776
schematic

Manufacturer equivalents (12)

23 F 010 S 1 · 23 F 0101 S · 23 F 101 S 1 · FBT 23 F 010 S 1 · FBT 23 F 0101 S 1 · FBT 23 F 101 S 1 · FBTF 011 S 1 · HFT 814 · HFT 814 A · HFT 846 · MAT33408 · ME/0334-08

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46255 · HR 7848 · HR 6562 · HR 7799 · HR 46220

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

PRINCETON 2834 · PRINCETON MONITOR · PRINCETON ULTRA 12 · PRINCETON ULTRA 16 · PRINCETON ULTRASYNC
