HR 6562

type SM · family 1LS · 49.9 kV maximum anode voltage · H° deflection · 3 windings · 330 g

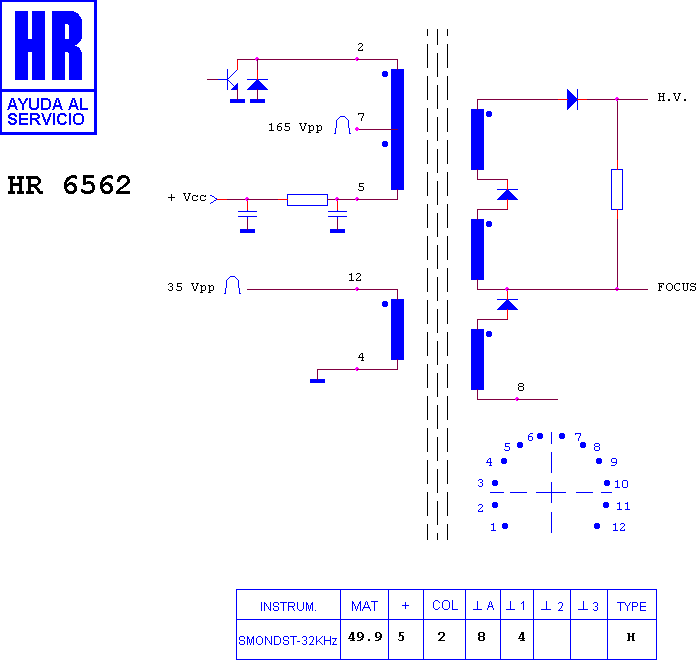

Schematic diagram for HR 6562 — schematic

Manufacturer equivalents (1)

HR 6562-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7799 · HR 7943 · HR 7776 · HR 6494
