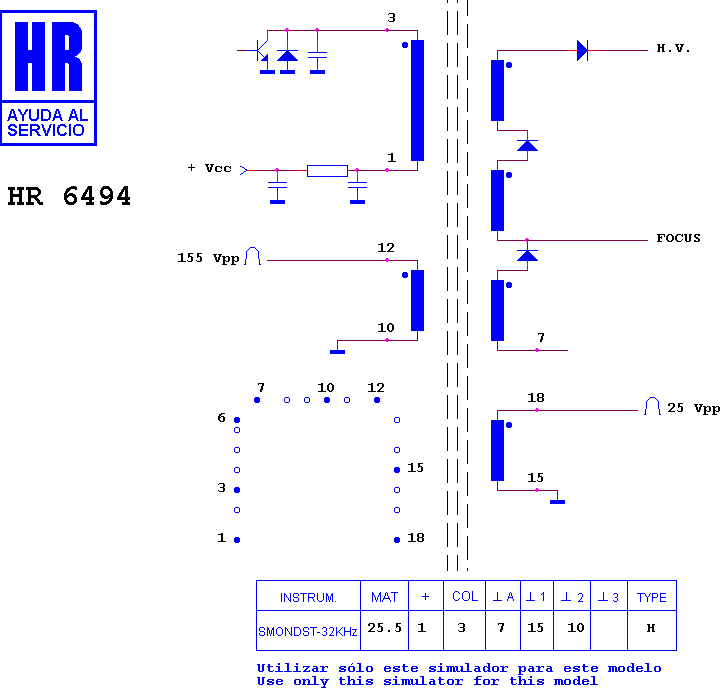

HR 6494

type SM · family 1IS1 · 25.5 kV maximum anode voltage · H° deflection · 4 windings · 404 g

Manufacturer equivalents (3)

3122 138 38021 · 362140-0002 · 362140-2

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7943 · HR 6562 · HR 7799 · HR 7804

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control
