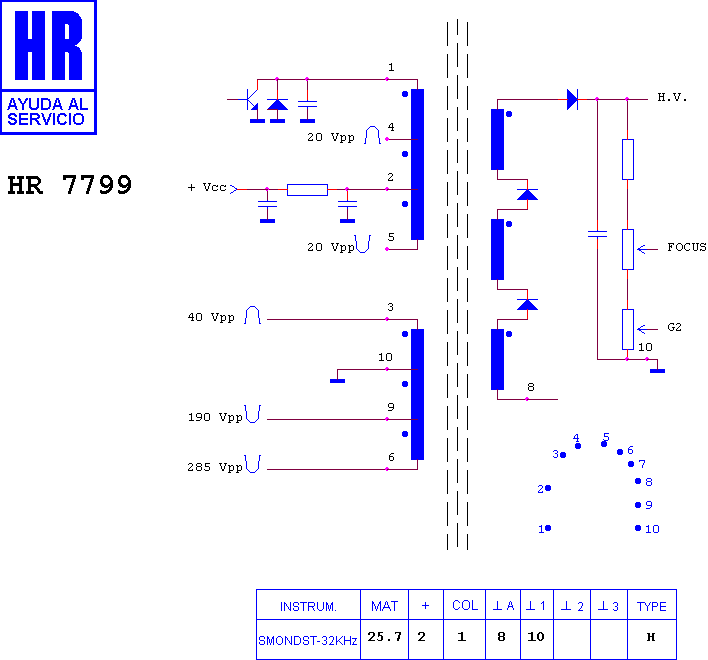

HR 7799

type SM · family 1WP1 · 25.7 kV maximum anode voltage · H° deflection · 3 windings · 426 g

Manufacturer equivalents (4)

2436233 · 2436233 B · 7050304215 · HFT 158 M

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7848 · HR 7776 · HR 6494 · HR 6562 · HR 7943

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (4)

TAXAN 790 · TAXAN MONITOR · TAXAN SU 790 · TAXAN SV 790
