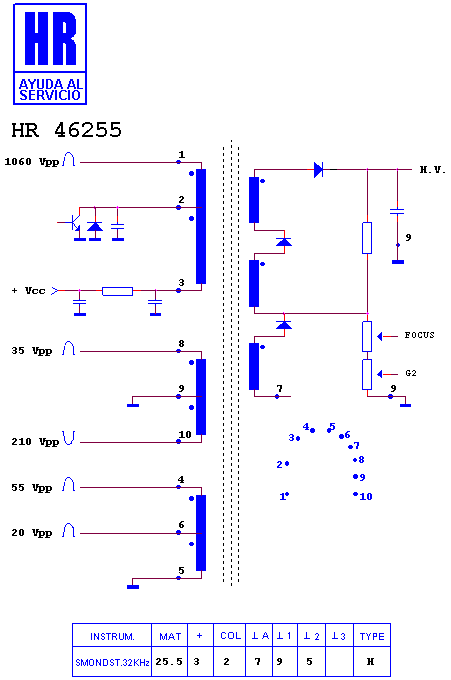

HR 46255

type SM · family 1WP1 · 25.5 kV maximum anode voltage · H° deflection · 4 windings · 461 g

Manufacturer equivalents (3)

6174 Z 1017 E · IP 14158 · KT 20.013

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Fitted to (35)

GENIUS MONITOR · GENIUS VA 570 · IBM 1561 · IBM 6334 AE · IBM 6633-4 AE · IBM A 51 · IBM MONITOR · IBM TJ 74 ALK 13 N · LG - GOLDSTAR 1561 · LG - GOLDSTAR 450 N · LG - GOLDSTAR 520 · LG - GOLDSTAR 520 SI · LG - GOLDSTAR 560 · LG - GOLDSTAR 560 N · LG - GOLDSTAR 561 A · LG - GOLDSTAR 561 N · LG - GOLDSTAR CA 68 · LG - GOLDSTAR CB 550 B · LG - GOLDSTAR CB 550 BN · LG - GOLDSTAR CB 560 B · LG - GOLDSTAR CB 560 BA · LG - GOLDSTAR CB 560 BN · LG - GOLDSTAR CB 560 N · LG - GOLDSTAR CB 561 BN · LG - GOLDSTAR CHASIS CA 68 · LG - GOLDSTAR KCB 450 B · LG - GOLDSTAR MONITOR · LG - GOLDSTAR MONITOR STUDIO WORKS · LG - GOLDSTAR SCB 560 B · LG - GOLDSTAR STUDIOWORKS 560 · LG - GOLDSTAR STUDIOWORKS560N · LG - GOLDSTAR STUDIOWORKS561A · LG - GOLDSTAR SW 520 SI · LG - GOLDSTAR SW 560 N · LG - GOLDSTAR SW 561 A
