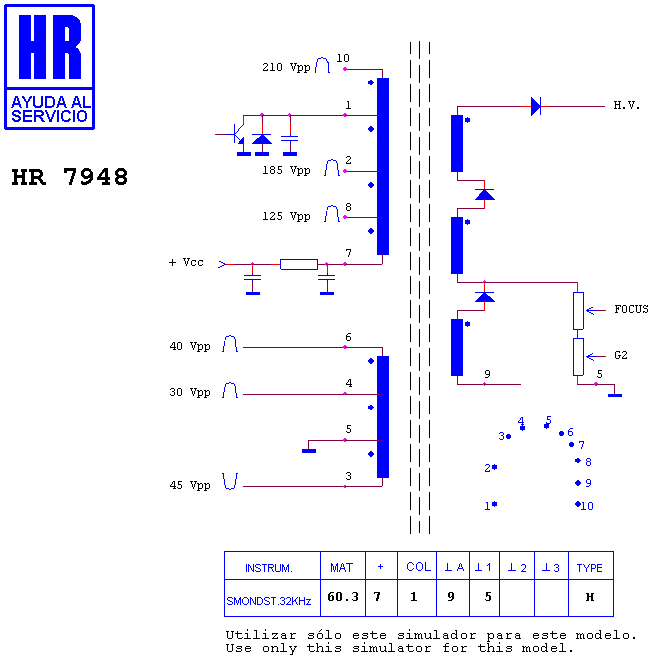

HR 7948

type SM · family 1XP1 · 60.3 kV maximum anode voltage · H° deflection · 3 windings · 268 g

Manufacturer equivalents (1)

TCG 30 B 04

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

AR SYSTEMS 1010 TC · AR SYSTEMS ARS 1010 TC · ELEKTA KSA 143 V · NOVA NTV 2010 MK · PANAVISION TV 10" · PANAVISION TV 12" · SAMNON SW 100
