HR 6718

26.4 kV maximum anode voltage · 110° deflection · 3 windings · 380 g

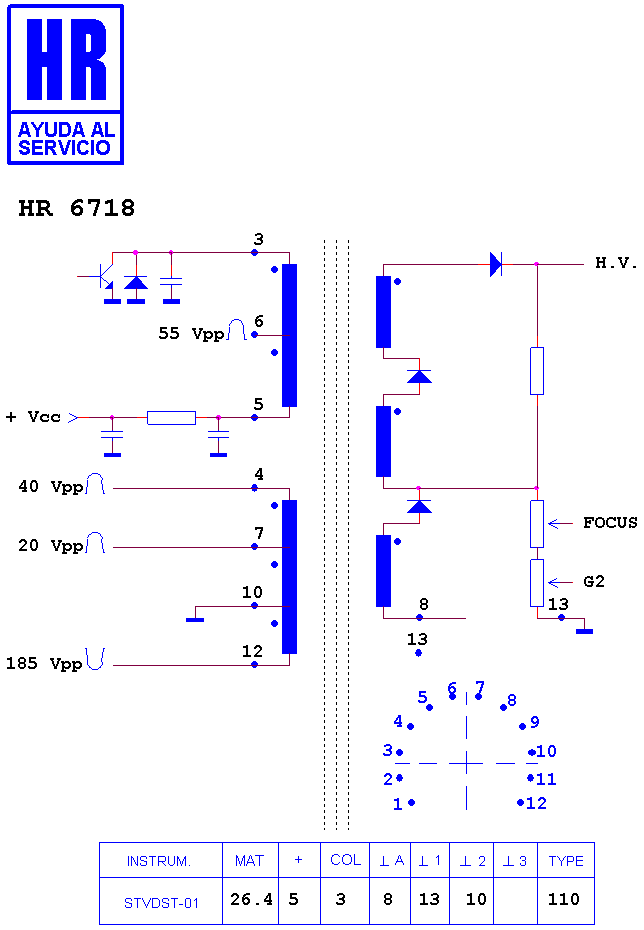

Schematic diagram for HR 6718
schematic (archived)

Manufacturer equivalents (5)

1182.1187 · 1182.1187B · F990H704 · F990Z021 · HR 6718

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 9494 · HR 6381 · HR 8575 · HR 7966

Fitted to (15)

C.G.E. 28 FX 95 · C.G.E. 29 FX 95 · C.G.E. CHASIS 990 · C.G.E. CHASIS F 990 · CONCORD 29 DX 95 · CONCORD 29 FX 95 · IMPERIAL 29 DX 95 · IMPERIAL CHASIS F 990 · IMPERIAL CHASIS F 990 110 · IMPERIAL CHASIS F 990 29 · IMPERIAL CONCORDE · PALLADIUM 970/492 · PALLADIUM PALLADIUM · PHILCO CHASIS F 990 · PHILCO SS 2995
