HR 8575

type ST · family 1YP · 34.2 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

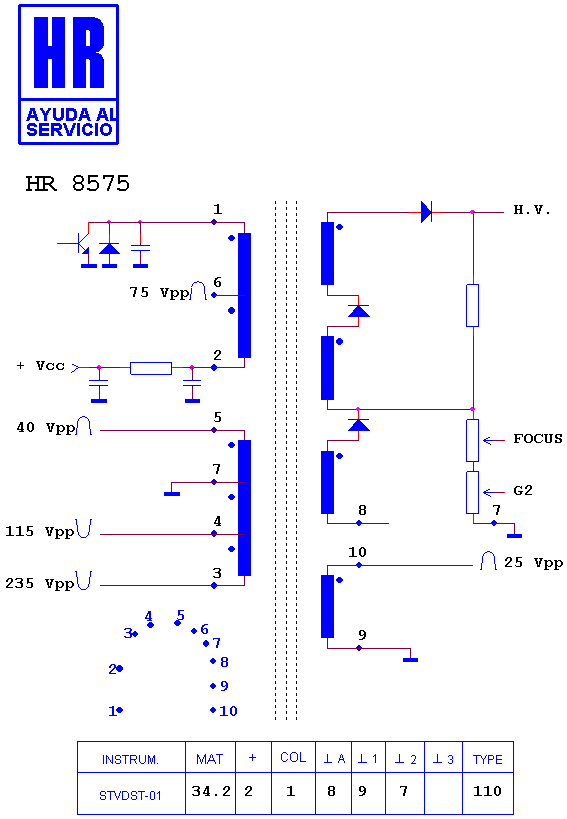

Schematic diagram for HR 8575
schematic

Manufacturer equivalents (7)

104370.20 · 334 P 243 A 30 · 334 P 243-3 · 334 P 243-30 · 334 P 24303 · 334 P 243030 · 40327-21

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7966 · HR 6381 · HR 6718

Fitted to (6)

MITSUBISHI CT 25 AV 1 SD-S · MITSUBISHI CT 28 BV 1 S · MITSUBISHI CT 29 BV 1 BD · MITSUBISHI CT 29 BV 1 S · MITSUBISHI CT 29 BV 1 Y · MITSUBISHI CT 29 BVS
