HR 6381

type ST · family 1BP1 · 29.7 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

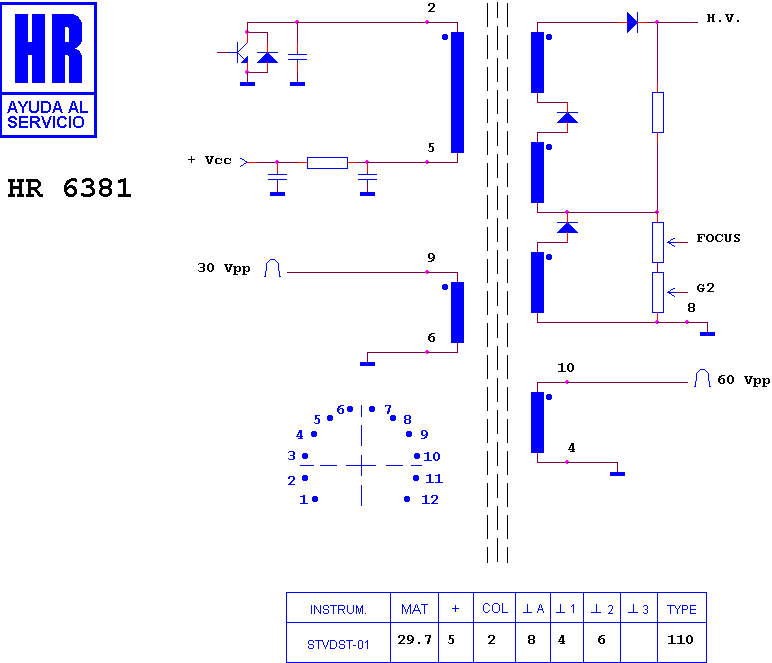

Schematic diagram for HR 6381
schematic

Manufacturer equivalents (1)

HR 6381-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8575 · HR 8182 · HR 7966 · HR 6718 · HR 6504

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
