HR 8182

type ST · family 1SP2 · 32 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

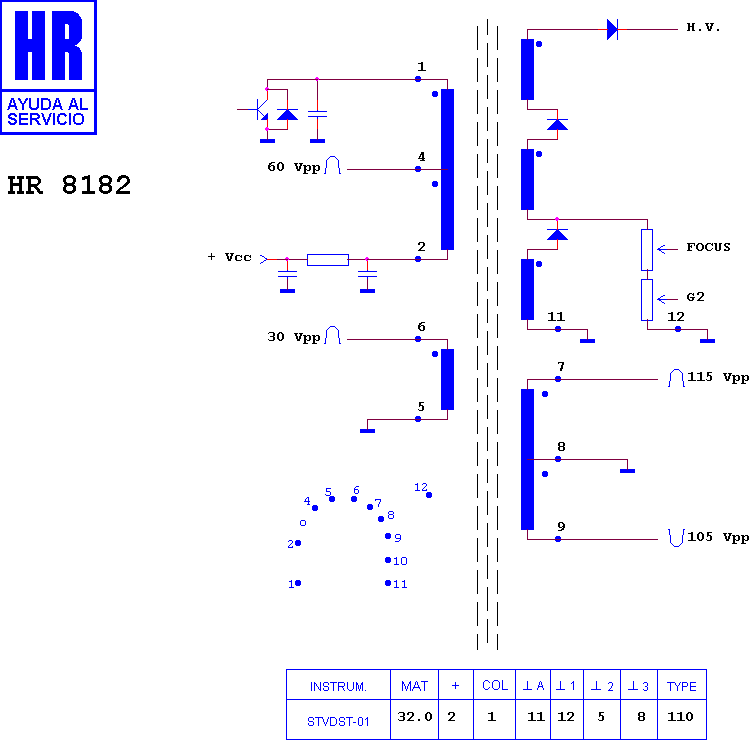

Schematic diagram for HR 8182
schematic

Manufacturer equivalents (3)

1-453-361-11 · 8-598-844-00 · NX 1911

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6201 · HR 6381

Fitted to (1)

SONY KV 21 C 5 D
