HR 9494

type CH · family 271 · 3 windings · 172 g

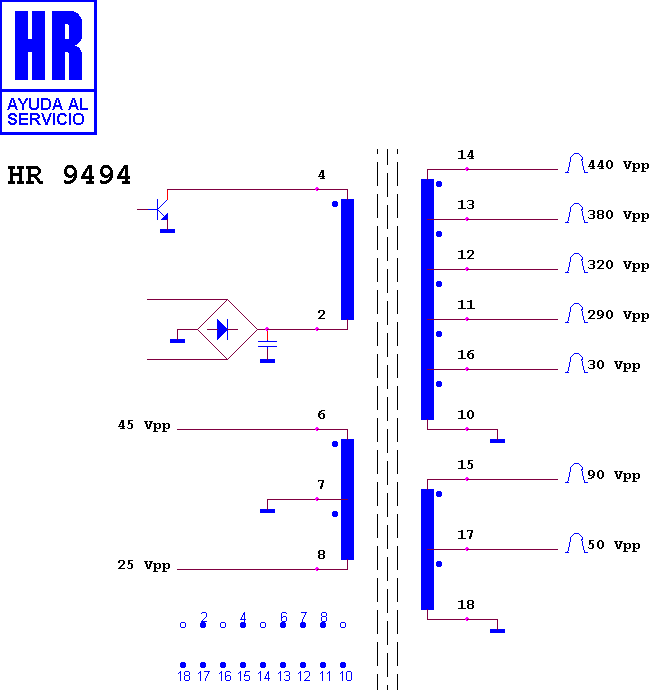

Schematic diagram for HR 9494
schematic

Manufacturer equivalents (3)

2082.0933 · TR 07.176 · TR 07.196

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6718
