HR 6243

type ST · family 1BP1 · 29.7 kV maximum anode voltage · 110° deflection · 3 windings · 425 g

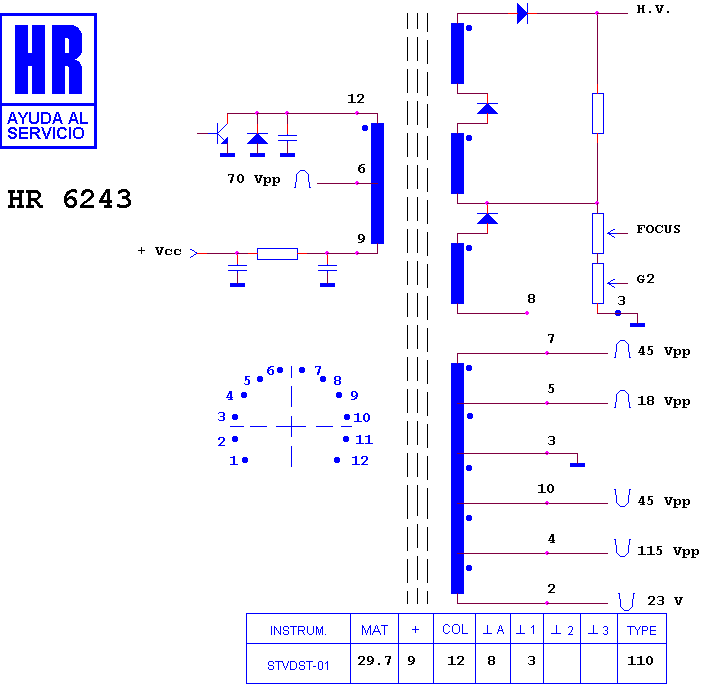

Schematic diagram for HR 6243
schematic

Manufacturer equivalents (2)

473342.00 · 57 529

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8405 · HR 8316 · HR 8469 · HR 8071 · HR 8201 · HR 8549 · HR 8659 · HR 7265 · HR 7267 · HR 7260 · HR 8288

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
