HR 46277

43.8 kV maximum anode voltage · H° deflection · 3 windings · 474 g

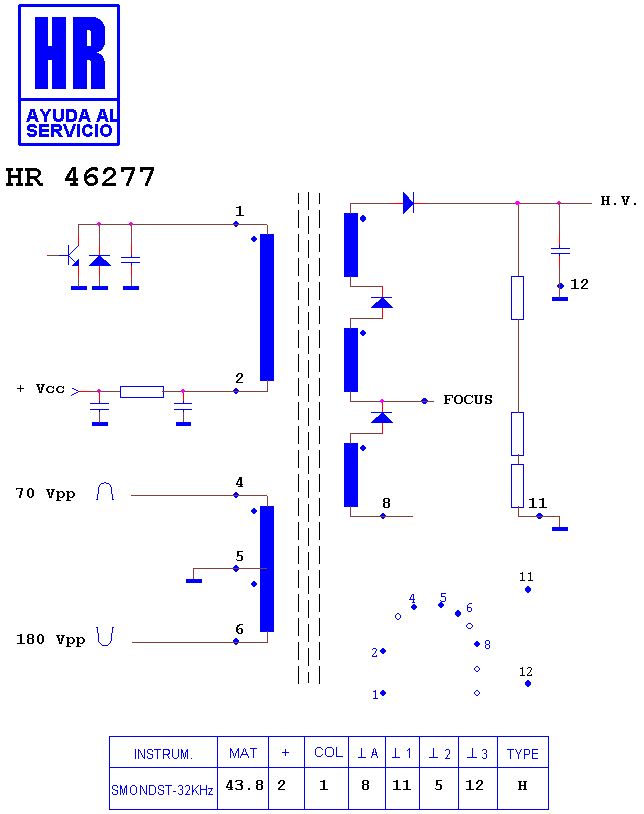

Schematic diagram for HR 46277
schematic (archived)

Manufacturer equivalents (7)

26831422 · 312226831420 · 312226831421 · 312226831422 · 31422 · AT2090/42 · AT2090/42-31442

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46220 · HR 7933 · HR 7786 · HR 46183 · HR 7764

Fitted to (6)

SIEMENS 14 · SIEMENS MONITOR · SIEMENS MONITOR · SIEMENS MONITOR · SIEMENS SCM 2185 MED · SIEMENS SCM 2196 I
