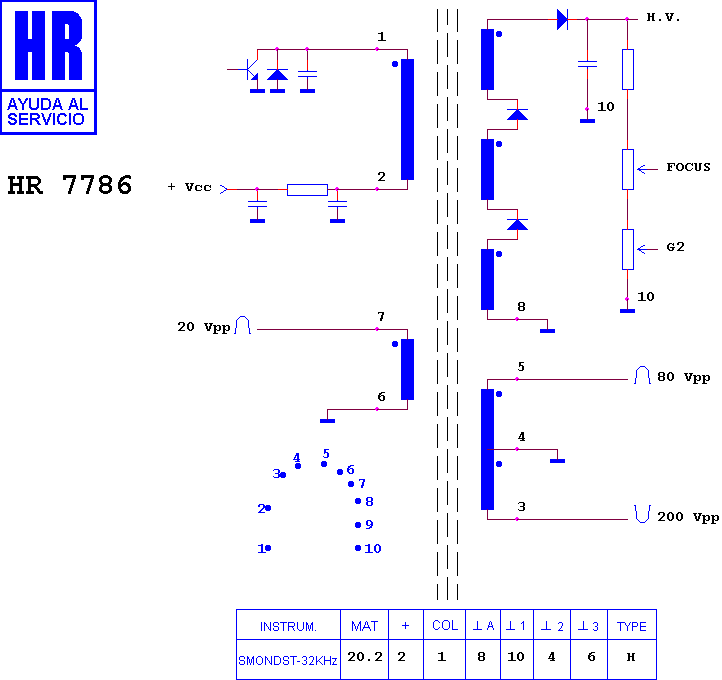

HR 7786

type SM · family 1WP1 · 20.2 kV maximum anode voltage · H° deflection · 4 windings · 426 g

Manufacturer equivalents (4)

FTQ 14 A 003 · FTQ 14 A 003 A · FTQ 17 A 003 A · MAT 33279

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

IBM 14 L 6 · IBM 14 L 8 · IBM 6321 · IBM 6321 R 03 · IBM 6321 R 13 · IBM 6321-003 · IBM 6321-013 · IBM 6321003 · IBM 6321013 · IBM CM 6321 · IBM MONITOR
