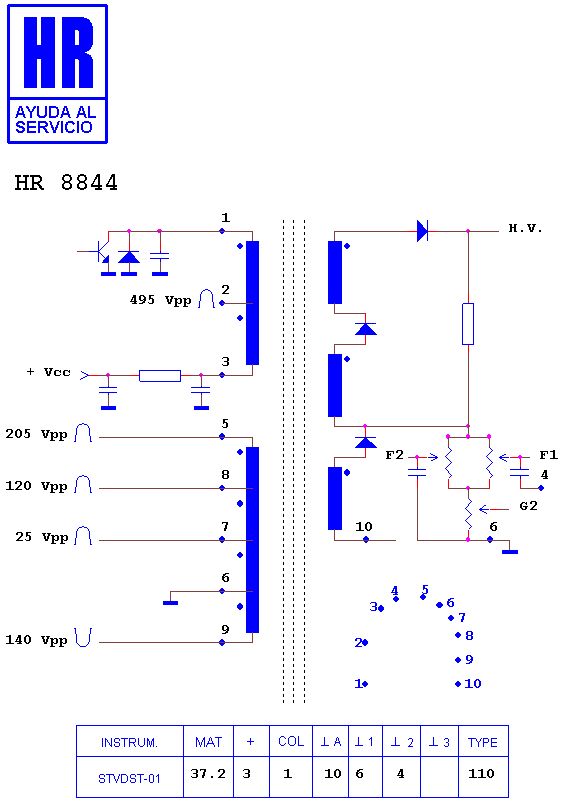

HR 8844

37.2 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

Manufacturer equivalents (6)

AA 26-00071 A · AA 26-00087 A · FUJ 29 C 007 · FUJ 29 C 007 A · FUJ 29 C 007 F · FUJ 29 C 007 S

Parts of a similar design. A shortlist to check, not a recommendation.

PIN 4 AND 12 (DIN.F) MUST BE JUMPED IN THE PRINTED CIRCUIT BOARD. (SEE INSTRUCTIONS)

SAMSUNG C 134 M 9 P 8X X-XAP · SAMSUNG CHASIS KS 3 A · SAMSUNG CS 29 A 5 WR · SAMSUNG CS 29 A 6 NT
