HR 6464

type ST · family 1BS1 · 32.1 kV maximum anode voltage · 110° deflection · 4 windings · 390 g

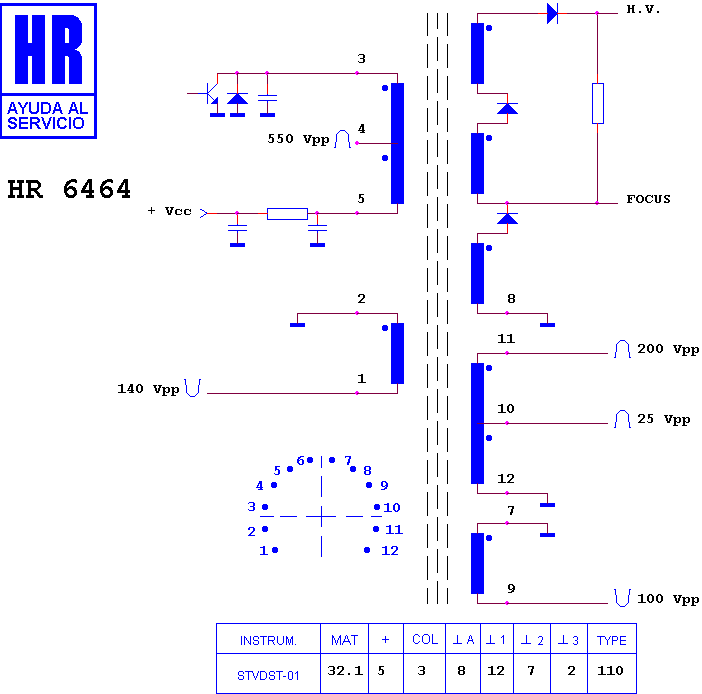

Schematic diagram for HR 6464
schematic

Manufacturer equivalents (4)

102078.90 · 102078J0.P1 · 40308-44 · 534 TX 0342

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8944 · HR 80075 · HR 8844

Fitted to (1)

NORDMENDE SPACE SYSTEM 81 HPL
