HR 80075

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

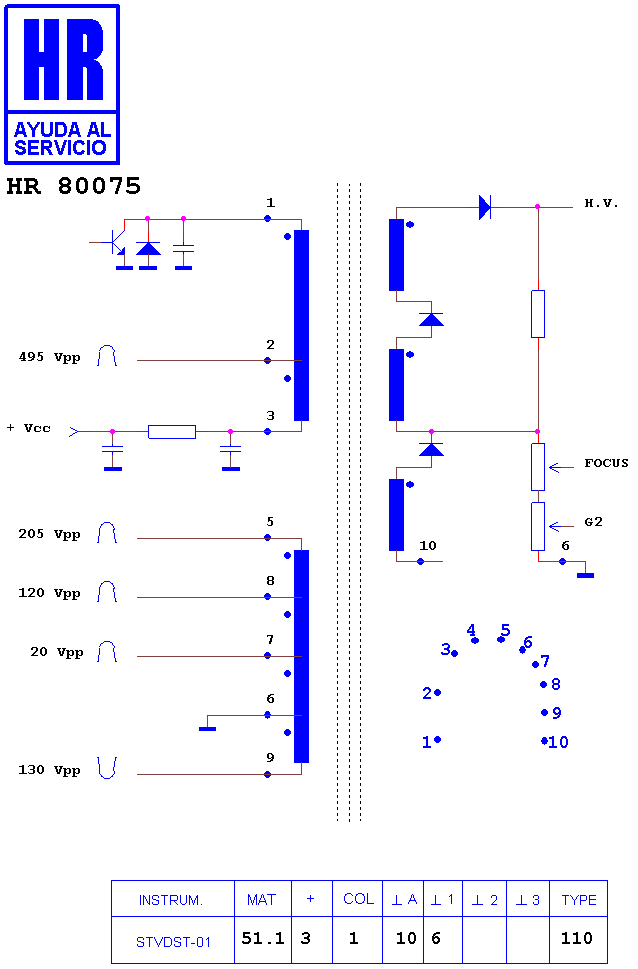

Schematic diagram for HR 80075
schematic (archived)

Manufacturer equivalents (3)

AA26-00112A · FUJ32D001 · FUJ32D001S

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8944 · HR 8844 · HR 6464

Fitted to (5)

SAMSUNG WS 32 W 8 VHE · SAMSUNG WS 32 W 8 VHE 8 X · SAMSUNG WS 32 W 8 VHE 8 XXEC · SAMSUNG WS 32 W 8 VHE 8 XXET · SAMSUNG WS 32 WVHE
