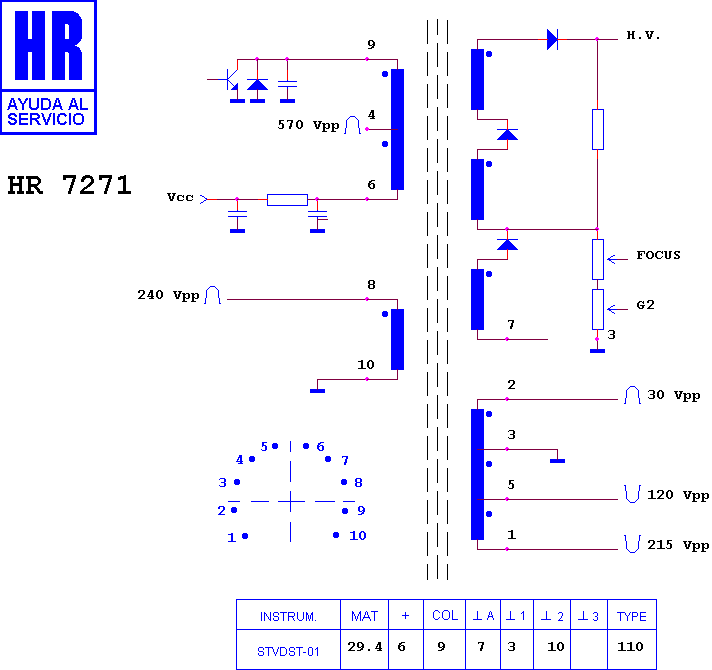

HR 7271

type ST · family 1AP1 · 29.4 kV maximum anode voltage · 110° deflection · 4 windings · 364 g

Manufacturer equivalents (13)

003381107 · 473200.38 · 473200.48 · 473200.65 · 473200E8.P1 · 534 TX 0339 · 534 TX 0349 · F36N.3006 · FAT 30538 · HR 7271 · KN 30538 · RO926 · TR926

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8844 · HR 8944

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Fitted to (21)

BRANDT 51 246 T · BRANDT 63 954 T · BRANDT 70 973 T · NORDMENDE CHASIS ICC 6 · NORDMENDE GALAXY 63 KV · NORDMENDE GALAXY 63 VS · NORDMENDE GALAXY 70 KV · NORDMENDE GALAXY 70 VS · NORDMENDE M 63 VS · NORDMENDE M 70 VS · NORDMENDE SPECTRA M 63 VS · NORDMENDE SPECTRA M 70 VS · TELEFUNKEN 426 MT · TELEFUNKEN 526 MT · TELEFUNKEN F 426 MT · TELEFUNKEN F 526 MT · TELEFUNKEN MR 701 · TELEFUNKEN PALCOLOR F · THOMSON 63 MS 30 · THOMSON 70 DK 30 Y · THOMSON CHASIS ICC 6
