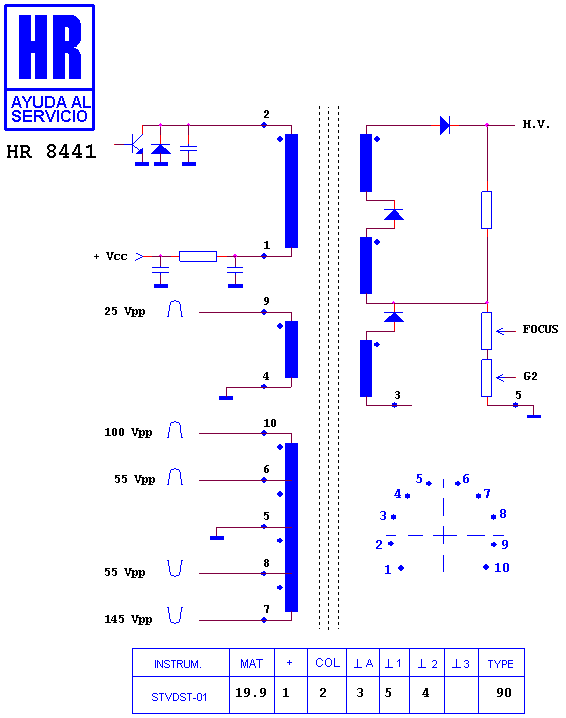

HR 8441

type ST · family 1AP1 · 19.9 kV maximum anode voltage · 90° deflection · 4 windings · 380 g

Manufacturer equivalents (5)

106152.60 · 10625260 · 40332-45 · FAT30733 · HR 8441

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8698 · HR 7884 · HR 8019 · HR 7546

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

BRANDT 55 210 S · FERGUSON-THORN-EMI M 5518 U · SABA M 5518 · SABA M 5518 C · SABA M 5518 E · SABA M 5518 U
