HR 80006

29.7 kV maximum anode voltage · H° deflection · 3 windings · 474 g

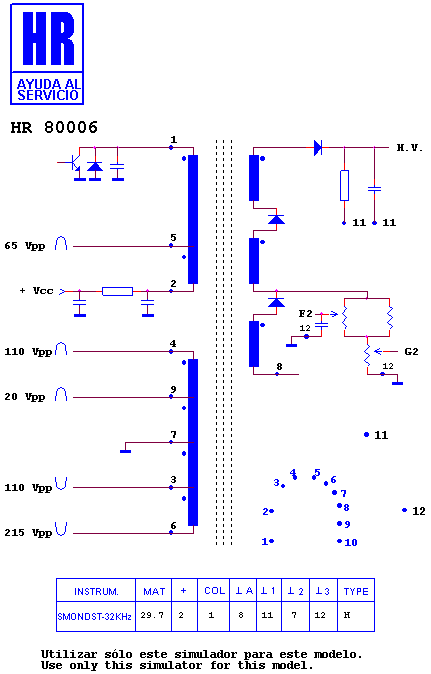

Schematic diagram for HR 80006
schematic (archived)

Manufacturer equivalents (2)

6174V6010F · 6174V6012W

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80139 · HR 7212

Fitted to (2)

THOMSON 32 WX 410 S · ZENITH C 34 W 23
