HR 7212

type SM · family 1RP · 23.1 kV maximum anode voltage · H° deflection · 3 windings · 332 g

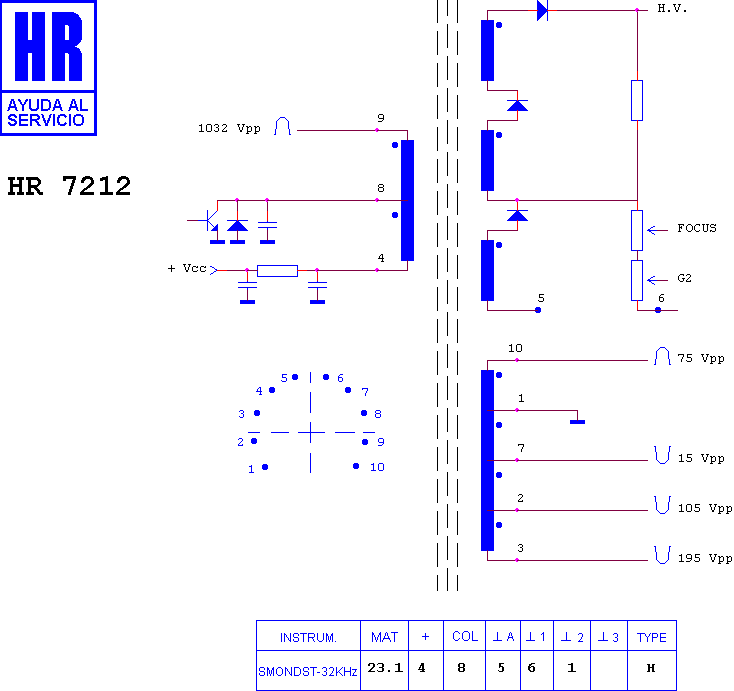

Schematic diagram for HR 7212
schematic

Manufacturer equivalents (2)

3119 208 31660 · 46 155 0024

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80006 · HR 8042 · HR 80139

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

FIMI M 1094 A · FIMI MONITOR · HEWLETT PACKARD M 1094 A · HEWLETT PACKARD MONITOR
