HR 8042

type SM · family 1ACP · 25.3 kV maximum anode voltage · H° deflection · 4 windings · 400 g

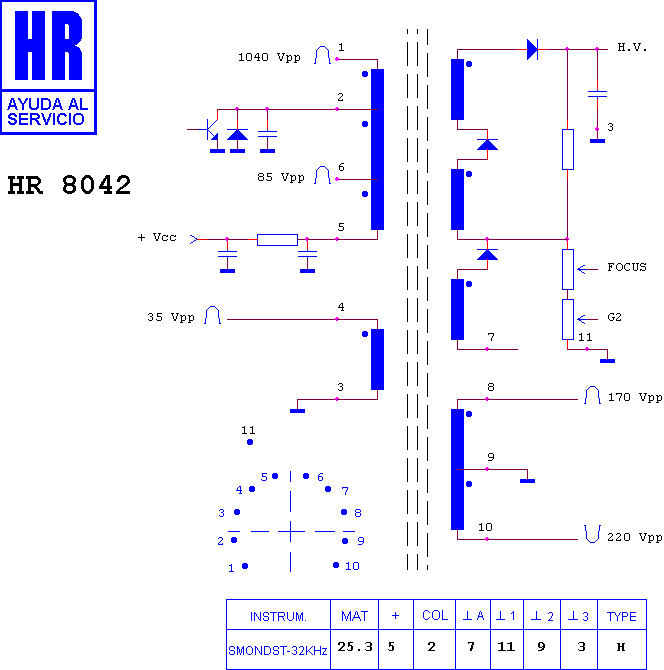

Schematic diagram for HR 8042
schematic

Manufacturer equivalents (2)

01 AV 115 · 8042-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7212

Fitted to (2)

FENICE F 330-F 17 · FENICE MONITOR
