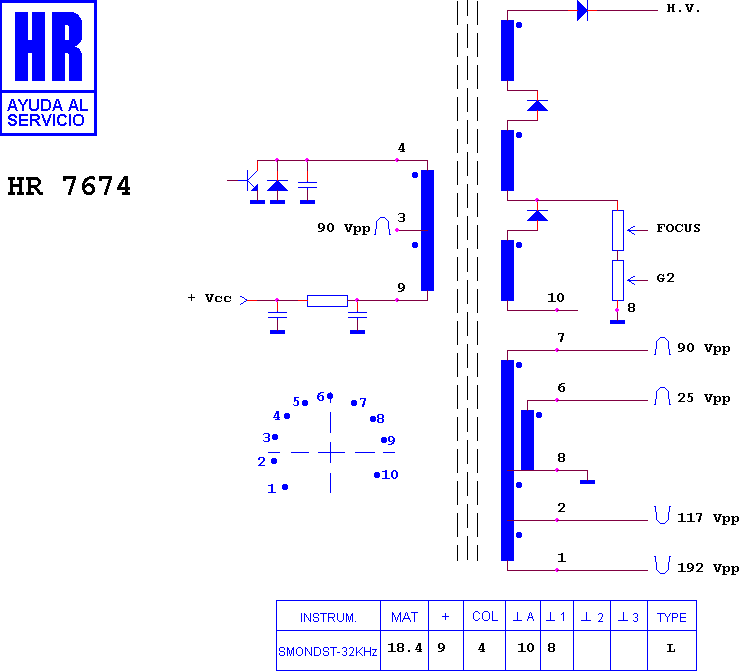

HR 7674

type SM · family 1XP1 · 18.4 kV maximum anode voltage · L° deflection · 3 windings · 290 g

Manufacturer equivalents (3)

3714009 · 3714016 · AM 170468

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7829 · HR 8457 · HR 6560 · HR 7954 · HR 8566

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

AMSTRAD CCTM 644 · AMSTRAD CM 14 · AMSTRAD COMPUTER MONITOR · AMSTRAD COMPUTER MONITOR MK 1 · AMSTRAD COMPUTER MONITOR MK 2 · AMSTRAD CPC 6128 · AMSTRAD CTM 640 · AMSTRAD CTM 644 · AMSTRAD CTM 644 (REV) · AMSTRAD ZM 644
