HR 7622

type ST · family 1XP1 · 19 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

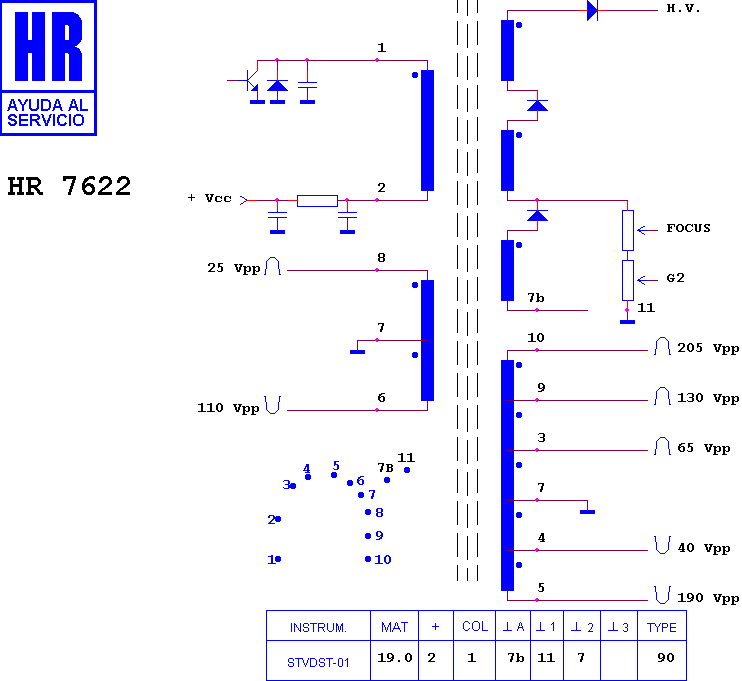

Schematic diagram for HR 7622
schematic

Manufacturer equivalents (3)

2434652 · 2434652 H · 434652

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7887 · HR 7890 · HR 7204 · HR 7787 · HR 7879 · HR 7254

Fitted to (2)

TOSHIBA 2220 · TOSHIBA 2250
