HR 7357

type ST · family 1AP2 · 19.6 kV maximum anode voltage · 90° deflection · 4 windings · 298 g

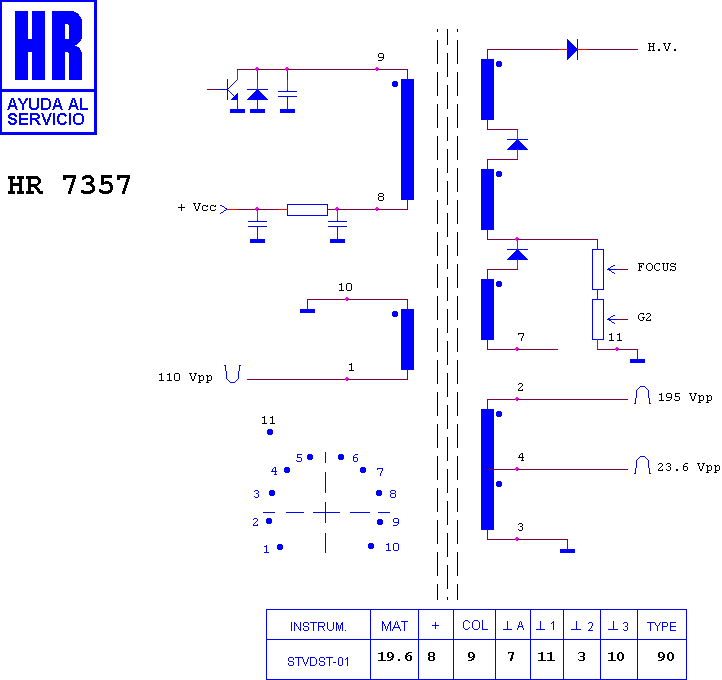

Schematic diagram for HR 7357
schematic

Manufacturer equivalents (7)

2436214 · 571391001902 · FCV 2010 · FCV 2010 E 02 · FCV 2011 · FCV2015 · TVC/11

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8760 · HR 8715 · HR 7501 · HR 7795 · HR 8118

Fitted to (9)

GRADIENTE 20 C 5170 · GRADIENTE GT 2010 · GRADIENTE GT 2011 · GRADIENTE GT 2015 · TELEFUNKEN 20 C 5170 · TELEFUNKEN 2010 · TELEFUNKEN 2011 · TELEFUNKEN 2015 · TELEFUNKEN GT
