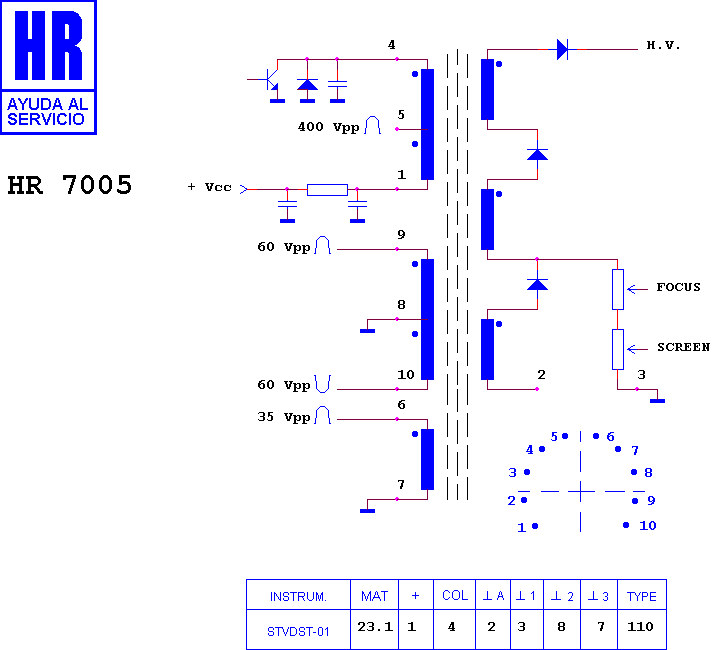

HR 7005

type ST · family 1NP1 · 23.1 kV maximum anode voltage · 110° deflection · 4 windings · 278 g

Manufacturer equivalents (3)

1105.0137 · ME/6038-00 · TDS 113

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7969 · HR 7034 · HR 6013

Fitted to (17)

ART VISION ALPHA 14" · ART VISION ALPHA 16" · ART VISION ALPHA 20" · ART VISION ALPHA 22" · ART VISION ALPHA 27" · ART VISION TVC 22"-26" · ART VISION TVC 22"-28" · CUPER ALPHA 14" · CUPER ALPHA 16" · CUPER ALPHA 20" · CUPER ALPHA 22" · CUPER ALPHA 27" · DEMACOLOR ALPHA 14" · DEMACOLOR ALPHA 16" · DEMACOLOR ALPHA 20" · DEMACOLOR ALPHA 22" · DEMACOLOR ALPHA 27"
