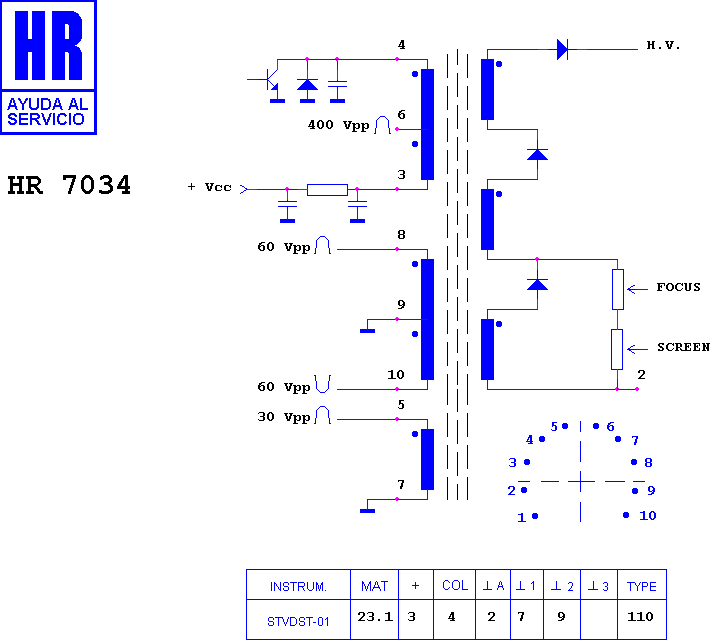

HR 7034

type ST · family 1NP1 · 23.1 kV maximum anode voltage · 110° deflection · 4 windings · 278 g

Manufacturer equivalents (1)

HR 7034

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7005 · HR 7969

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

KARSA TVC 90§ D.S.
