HR 6013

type ST · family 1BP · 21 kV maximum anode voltage · 110° deflection · 2 windings · 420 g

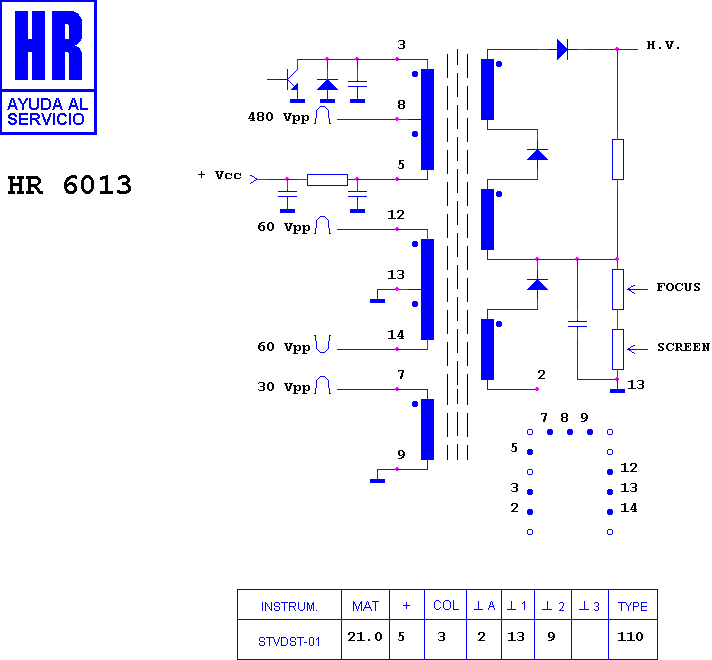

Schematic diagram for HR 6013
schematic

Manufacturer equivalents (2)

HR 6013 · HR 6013 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6002 · HR 6026 · HR 7005 · HR 6164

Fitted to (2)

IBERO-SHON - IBEROPHON TVC 110§ D.S. · IBERO-SHON - IBEROPHON TVC 110§ FSQ D.S.
