HR 6026

type ST · family 1BP · 21 kV maximum anode voltage · 110° deflection · 2 windings · 420 g

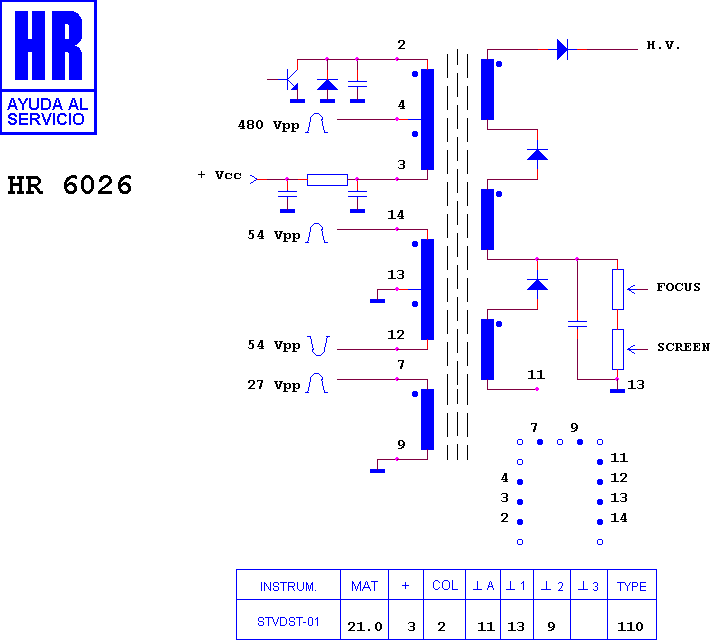

Schematic diagram for HR 6026
schematic

Manufacturer equivalents (2)

HR 6026 · HR 6026 HB

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6164 · HR 6002 · HR 6013

Fitted to (6)

NEWMAR CHASIS VKP 2 · VIDEO KIT TVC 8622 S · VIDEO KIT TVC 8622 ST · VIDEO KIT TVC 8626 S · VIDEO KIT TVC 8626 ST · VIDEO KIT TVC 8725 MD
