HR 6002

type ST · family 1BP · 29.7 kV maximum anode voltage · 110° deflection · 3 windings · 420 g

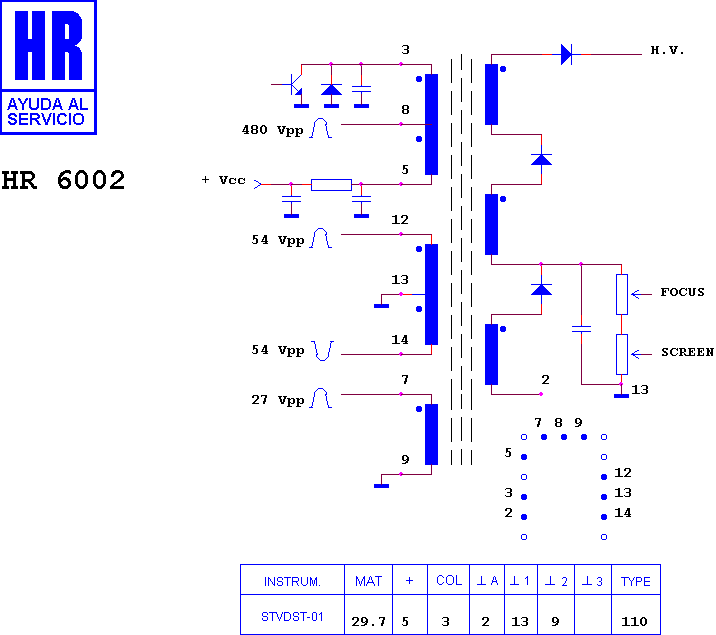

Schematic diagram for HR 6002 — schematic

Manufacturer equivalents (1)

HR 6002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6013 · HR 6026 · HR 6164
