HR 6576

type ST · family 1BS1 · 37.5 kV maximum anode voltage · 110° deflection · 4 windings · 358 g

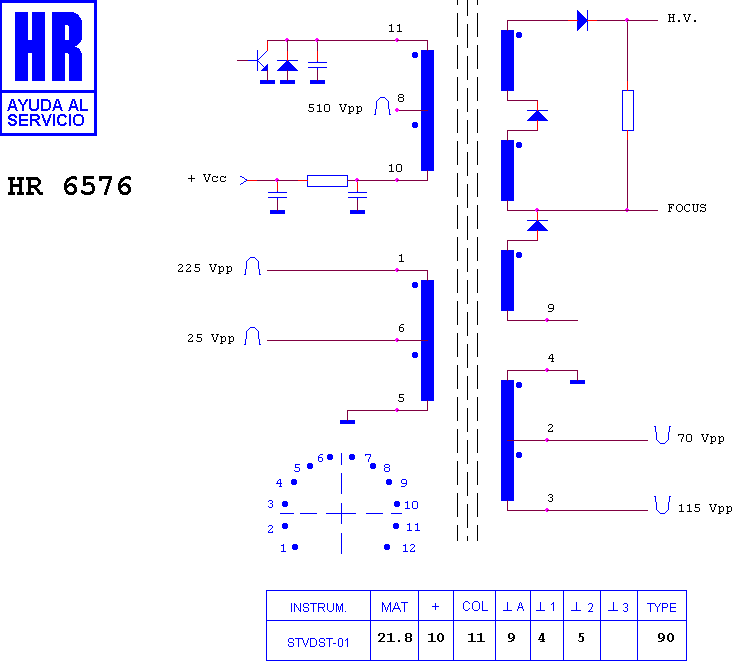

Schematic diagram for HR 6576
schematic

Manufacturer equivalents (3)

102291.70 · 40308-45 · 534 TX 0353

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6575 · HR 6457 · HR 6456 · HR 6462 · HR 8944

Fitted to (19)

NORDMENDE CHASIS ICC 9 · NORDMENDE CHASIS TX 90 · NORDMENDE FUTURA SOUND 94 TS · NORDMENDE FUTURASOUND 94 TS · SABA 51 K 40 · SABA CHASIS ICC 9 · SABA CHASIS TX 90 · SABA M 5106 · SABA SDM 51 K 30 · TELEFUNKEN CHASIS ICC 9 · TELEFUNKEN CHASIS TX 90 · TELEFUNKEN F 950 M · THOMSON 37 MG 55 J · THOMSON 37 MG 72 J · THOMSON 37 MG 73 J · THOMSON 37 MG 75 J · THOMSON 94 MX 68 N · THOMSON CHASIS ICC 9 · THOMSON CHASIS TX 90
