HR 6462

type ST · family 1BS1 · 32.7 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

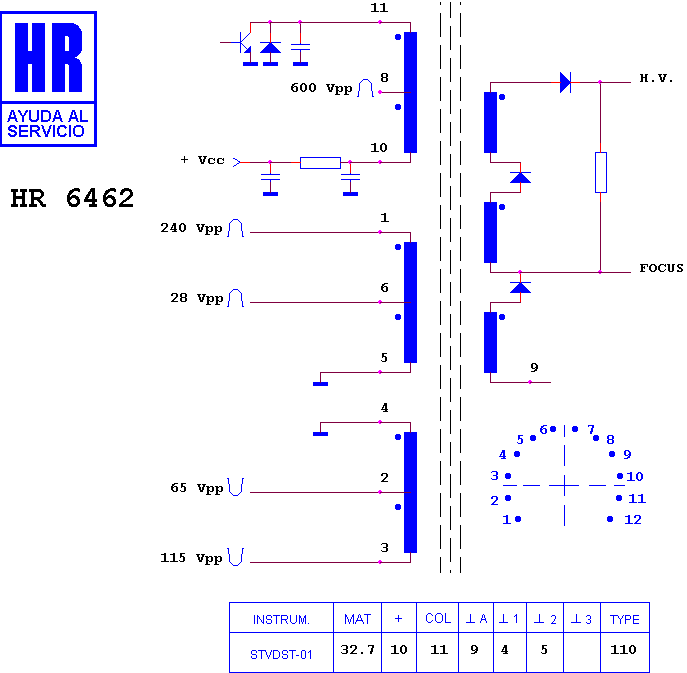

Schematic diagram for HR 6462
schematic

Manufacturer equivalents (10)

003370118 · 101590.50 · 101590F0.P2 · 40308-40 · 451547.01 · 534 TX 0348 · FAT30632 · HR 6462 · RO461 · TR461

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6576 · HR 6456 · HR 6457 · HR 80046

Fitted to (4)

NORDMENDE SPACE SYSTEM 81 TS · TELEFUNKEN 20 · TELEFUNKEN 20 NIC · TELEFUNKEN CINEVISION
