HR 80046

39 kV maximum anode voltage · 110° deflection · 4 windings · 474 g

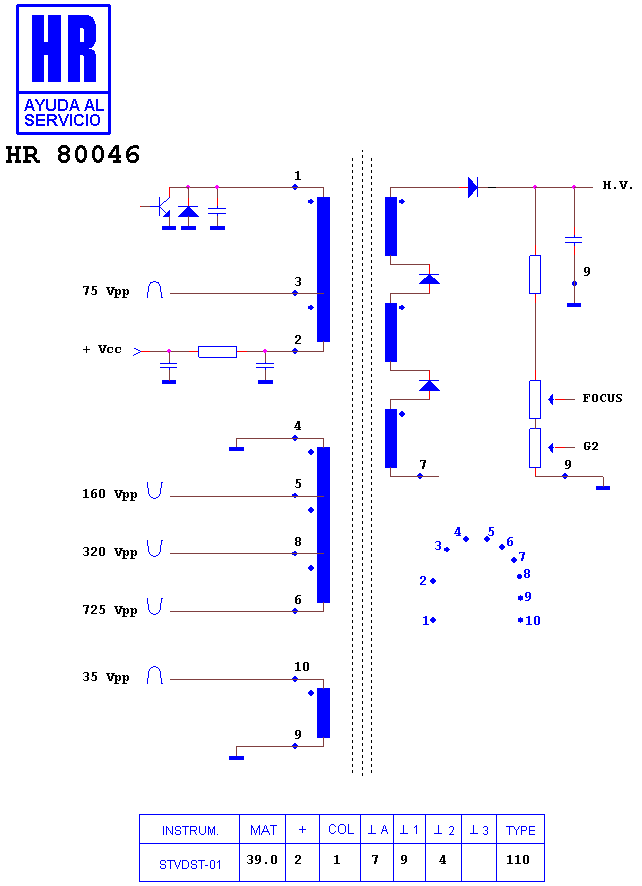

Schematic diagram for HR 80046
schematic (archived)

Manufacturer equivalents (1)

DH1515

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6462 · HR 6457

Fitted to (2)

FRN C-H 24 NEW · FRN MONITOR
