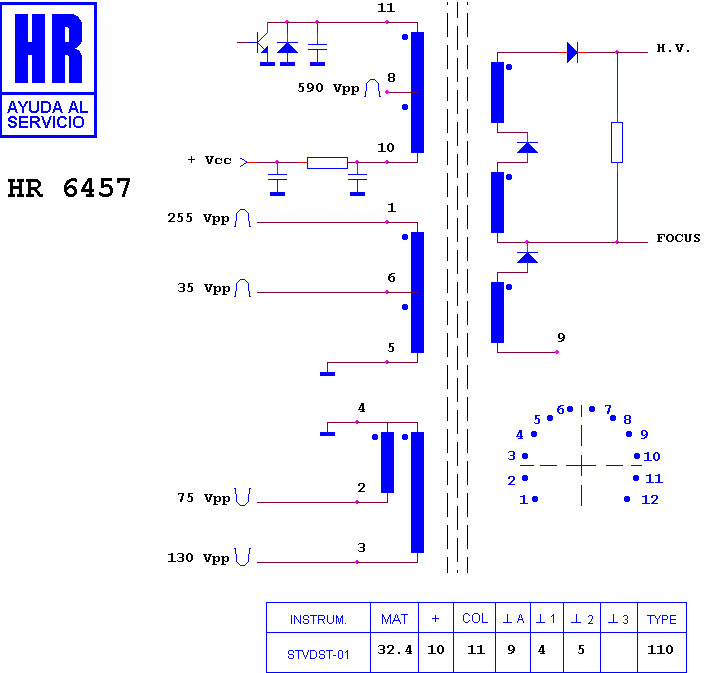

HR 6457

type ST · family 1BS1 · 32.4 kV maximum anode voltage · 110° deflection · 5 windings · 386 g

Manufacturer equivalents (3)

100351.40 · 40308-27 · 534 TX 0311

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6576 · HR 6462 · HR 6456 · HR 80046

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (3)

NORDMENDE FUTURA 55 LS · NORDMENDE SL 55 R · NORDMENDE SL 55 TS
