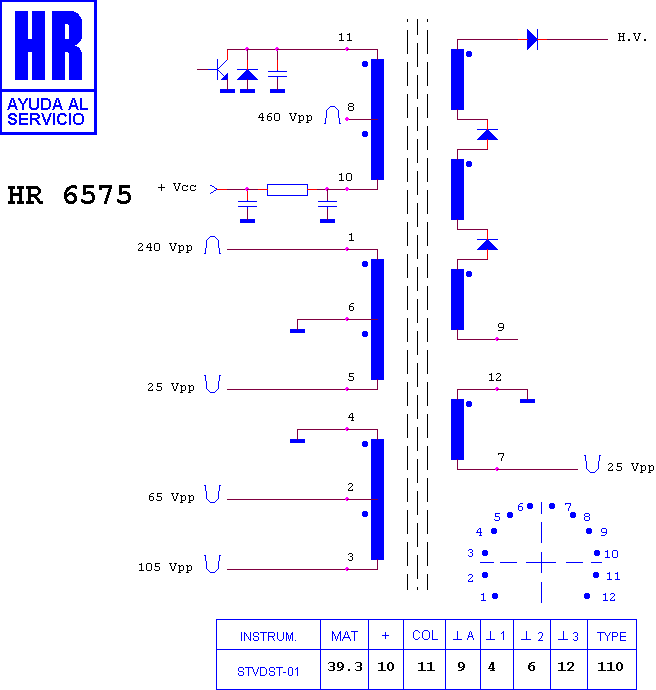

HR 6575

type ST · family 1BS1 · 39.3 kV maximum anode voltage · 110° deflection · 5 windings · 358 g

Manufacturer equivalents (3)

101763.70 · 40308-43 · 534 TX 0354

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6576 · HR 6014

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (27)

BRANDT CHASIS ICC 9 · FERGUSON-THORN-EMI CHASIS ICC 9 · FERGUSON-THORN-EMI RP 52 · FERGUSON-THORN-EMI RP 52 UK · NORDMENDE 996.801 N · NORDMENDE CHASIS ICC 9 · NORDMENDE CHASIS ICC 9 PTV · NORDMENDE RP 46 · NORDMENDE RP 46 K · NORDMENDE RP 52 · NORDMENDE RP 52 K · SABA CHASIS ICC 9 · TELEFUNKEN CHASIS ICC 9 · THOMSON 46 RG 72 J · THOMSON 46 RG 73 J · THOMSON 46 RG 75 J · THOMSON 52 RG 72 J · THOMSON 52 RG 73 J · THOMSON 52 RG 75 J · THOMSON CHASIS ICC 9 · THOMSON CHASIS ICC 9 PTV · THOMSON RP 46 · THOMSON RP 46 LK · THOMSON RP 46 TH · THOMSON RP 46 THU · THOMSON RP 52 LK · THOMSON RP 52 TH
